2144 LPF EU Assembled/ Full DIY Kit

2144 LPF EU Assembled/ Full DIY Kit

from 79.00

The ES 2144 LPF is a classic analog filter with a 24dB per octave slope.

It uses our 2144 submodule which features a reissue of the renowned SSM-2044 IC that formed the filter section for countless vintage synths. The filter's tone is warm and creamy at low resonance settings and moves into fat, over-driven squelches at the higher end of its range. It will self oscillate when resonance is cranked and outputs a pure sine tone. In addition, the frequency CV input tracks volt per octave allowing it to double as a sine wave VCO.

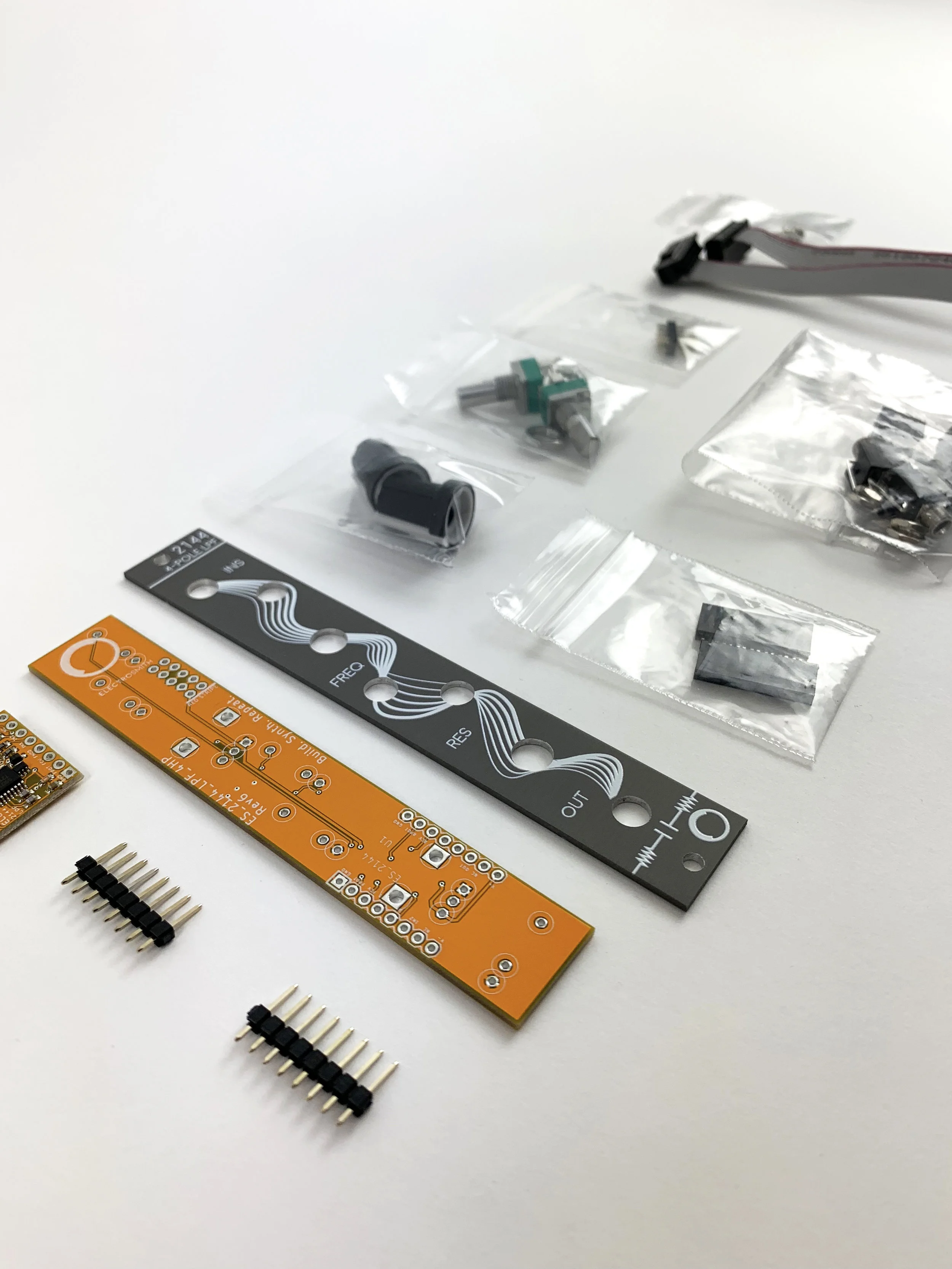

Available assembled or full DIY kit with all SMT installed.

  • Analog 4-pole low pass filter

  • Renowned SSM-2044 filter topology

  • CV over frequency and resonance

  • Frequency CV tracks volt per octave

  • Capable of self oscillation

  • Doubles as sine wave VCO with V/Oct tracking

Download the Build Guide here

Download the manual here
